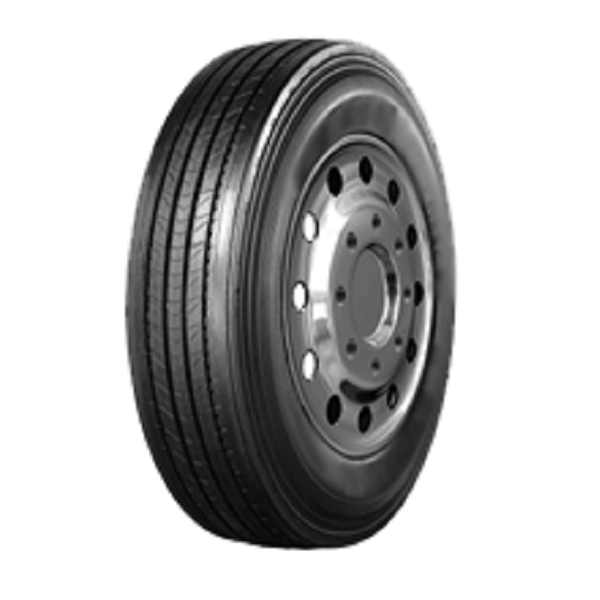

JIR-977
| SIZE | PR | LI / SS | STANDARD RIM | SIDEWALL SECTION (mm) | O.D. (mm) | TREAD DEPTH | TYPE | LOAD CAPACITY | INFLATION PRESSURE | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| SINGLE | SINGLE | ||||||||||
| KG | LBS | KPA | PSI | ||||||||
| 11R22.5 | 14 | 144/142M | 8.25 | 268 | 1048 | 14.5 | TL | 2800 | 6175 | 720 | 105 |
| 11R22.5 | 16 | 146/143M | 8.25 | 268 | 1048 | 14.5 | TL | 3000 | 6610 | 830 | 120 |
| 11R24.5 | 14 | 146/143M | 8.25 | 268 | 1099 | 14.5 | TL | 3000 | 6610 | 720 | 105 |
| 11R24.5 | 16 | 149/146M | 8.25 | 268 | 1099 | 14.5 | TL | 3250 | 7160 | 830 | 120 |
| 285/75R24.5 | 14 | 144/141M | 8.25 | 280 | 1044 | 14.5 | TL | 2800 | 6175 | 760 | 110 |
| 285/75R24.5 | 16 | 147/144M | 8.25 | 280 | 1044 | 14.5 | TL | 3075 | 6780 | 830 | 120 |
| 295/75R22.5 | 14 | 144/141M | 9.00 | 294 | 1010 | 14.5 | TL | 2800 | 6175 | 760 | 110 |
| 295/75R22.5 | 16 | 146/143M | 9.00 | 294 | 1010 | 14.5 | TL | 3000 | 6610 | 830 | 120 |
