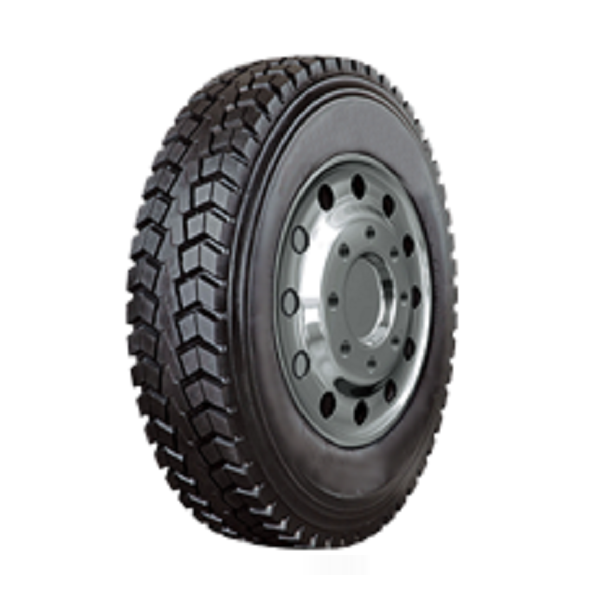

JIR-966
| SIZE | PR | LI / SS | STANDARD RIM | SIDEWALL SECTION (mm) | O.D. (mm) | TREAD DEPTH | TYPE | LOAD CAPACITY | INFLATION PRESSURE | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| SINGLE | SINGLE | ||||||||||
| KG | LBS | KPA | PSI | ||||||||
| 11R22.5 | 16 | 146/143L | 8.25 | 268 | 1063 | 22.0 | TL | 3000 | 6610 | 830 | 120 |
| 215/75R17.5 | 18 | 135/133K | 6.00 | 212 | 762.5 | 15.0 | TL | 2180 | 4805 | 850 | 125 |
| 235/75R17.5 | 18 | 143/141K | 6.75 | 238 | 762.5 | 15.0 | TL | 2725 | 6005 | 875 | 125 |
