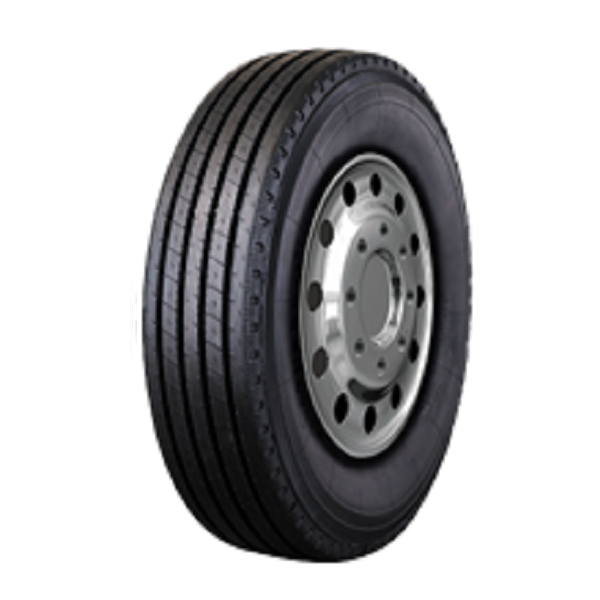

JIR-956
| SIZE | PR | LI / SS | STANDARD RIM | SIDEWALL SECTION (mm) | O.D. (mm) | TREAD DEPTH | TYPE | LOAD CAPACITY | INFLATION PRESSURE | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| SINGLE | SINGLE | ||||||||||
| KG | LBS | KPA | PSI | ||||||||
| 10R22.5 | 16 | 144/142M | 7.50 | 254 | 1019 | 14.5 | TL | 2800 | 6175 | 900 | 130 |
| 11R22.5 | 16 | 146/143M | 8.25 | 268 | 1048 | 14.5 | TL | 3000 | 6610 | 830 | 120 |
| 12R22.5 | 18 | 152/149M | 9.00 | 298 | 1078 | 14.5 | TL | 3550 | 7830 | 930 | 135 |
| 13R22.5 | 18 | 154/151L | 9.75 | 314 | 1119 | 14.5 | TL | 3750 | 8270 | 830 | 120 |
| 295/80R22.5 | 18 | 152/149M | 9.00 | 293 | 1040 | 14.5 | TL | 3550 | 7830 | 900 | 130 |
| 315/80R22.5 | 20 | 156/153K | 9.00 | 306 | 1071 | 14.5 | TL | 4000 | 8820 | 900 | 130 |
