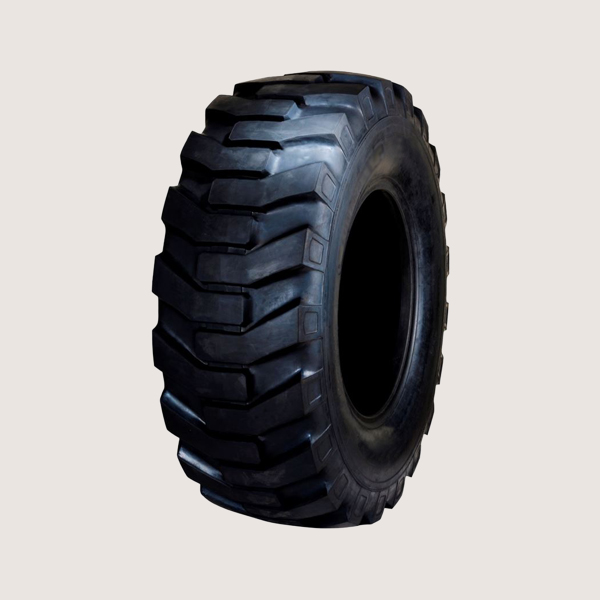

JIO-313
| Size | Ply Rating | Rim Width | Inflated Dimensions (+/- 2%) | Load Capacity (Kg) | I.P. (Bar) | ||
|---|---|---|---|---|---|---|---|
| OD (mm) | CSW (Section Width) (mm) | Free Rolling | Drive Wheel | ||||
| 15.5-25 | 10/12/16 | 12.00 | 1275 | 395 | 2980 | – | 2.80 |
| 17.5-25 | 12/14/16/20 | 14.00 | 1350 | 445 | 3650 | – | 3.25 |
| 20.5-25 | 12/16/20 | 17.00 | 1490 | 520 | 4500 | – | 2.25 |
| 23.5-25 | 16/20/24 | 19.50 | 1615 | 595 | 6700 | – | 2.50 |
