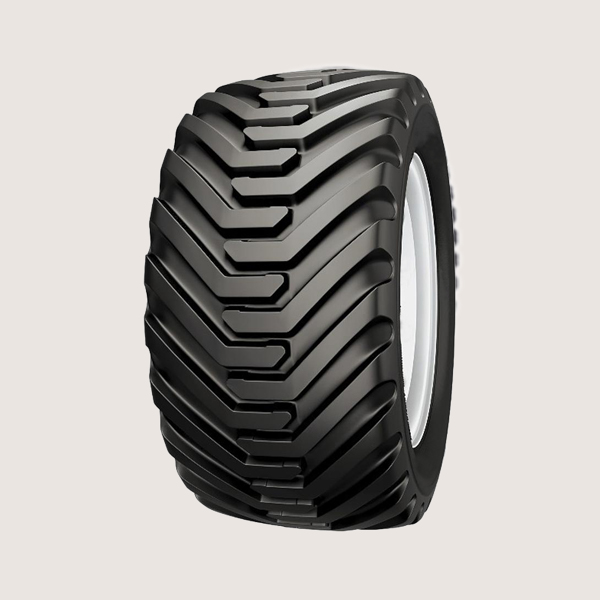

JIF-201 | Flotation Implement Tyres | Size 400/60-15.5, 400/60-22.5 and More Sizes
| Size | Ply Rating | Rim Width | Inflated Dimensions (+/- 2%) | Load Capacity (Kg) | I.P. (Bar) | ||
|---|---|---|---|---|---|---|---|
| OD (mm) | CSW (Section Width) (mm) | Free Rolling | Drive Wheel | ||||
| 400/60-15.5 | 8 | 13.00 | 874 | 400 | 2120 | 1500 | 2.40 |
| 400/60-22.5 | 16 | 11.75 | 1070 | 400 | 4000 | 2880 | 3.50 |
| 500/50-22.5 | 16 | 16.00 | 1070 | 500 | 4250 | 3000 | 2.80 |
| 550/45-22.5 | 12/16 | 16.00 | 1070 | 550 | 4375 | 3075 | 3.00 |
