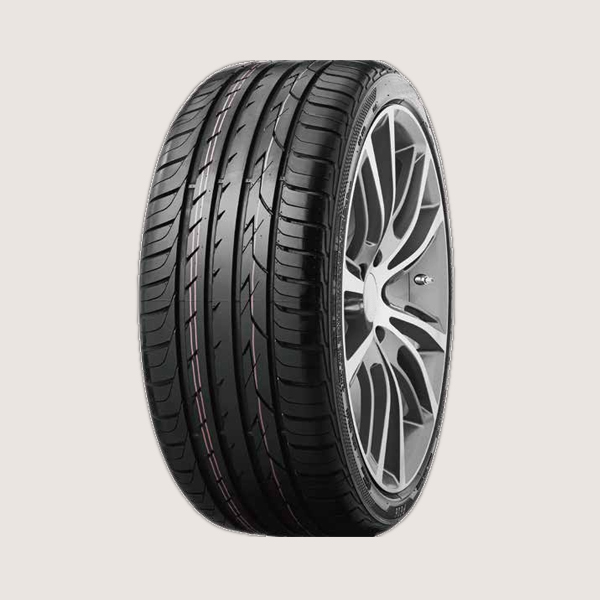

JIC-901
| SIZE | LOAD INDEX | SPEED INDEX | SECTION WIDTH (mm) | OUTER DIAMETER (mm) | GROOVE DEPTH |
|---|---|---|---|---|---|
| 195/45 R16 | 84 | V | 195 | 582 | 7.8 |
| 195/50 R15 | 82 | V | 201 | 577 | 7.8 |
| 195/50 R16 | 84/88 | V | 201 | 602 | 7.8 |
| 195/55R15 | 85 | V | 201 | 595 | 7.8 |
| 195/55R16 | 87 | V | 201 | 620 | 7.8 |
| 205/40 R17 | 84 | W | 212 | 596 | 7.8 |
| 205/45 R16 | 87 | W | 206 | 590 | 7.8 |
| 205/45 R17 | 88 | W | 206 | 616 | 7.8 |
| 205/50 R16 | 87 | W | 214 | 612 | 7.8 |
| 205/50 R17 | 93 | W | 214 | 638 | 7.8 |
| 205/55R16 | 91 | V | 214 | 632 | 7.8 |
| 205/55 R17 | 95 | W | 214 | 658 | 7.8 |
| 205/60 R14 | 88 | T | 209 | 602 | 7.8 |
| 215/35 Rl8 | 84 | W | 218 | 607 | 7.8 |
| 215/40 R17 | 87 | W | 218 | 604 | 7.8 |
| 215/45 R16 | 90 | V | 213 | 600 | 7.8 |
| 215/45 R17 | 91 | W | 213 | 626 | 7.8 |
| 215/50 R17 | 95 | W | 226 | 648 | 7.8 |
| 215/55 R16 | 97 | W | 226 | 642 | 7.8 |
| 215/55 R17 | 98 | W | 226 | 668 | 7.8 |
| 225/35 R19 | 88 | W | 230 | 641 | 7.8 |
| 225/35 R20 | 90 | W | 230 | 666 | 8.0 |
| 225/40 R18 | 92 | W | 230 | 637 | 7.8 |
| 225/45 R17 | 94 | W | 225 | 634 | 7.8 |
| 225/45 R18 | 95 | W | 225 | 659 | 7.8 |
| 225/50 R17 | 98 | W | 233 | 658 | 7.8 |
| 225/55 R16 | 99 | V | 233 | 654 | 7.8 |
| 225/55 R17 | 101 | W | 233 | 680 | 7.8 |
| 235/35 R19 | 91 | W | 241 | 647 | 7.8 |
| 235/40 R18 | 95 | W | 241 | 645 | 7.8 |
| 235/45 R17 | 97 | W | 236 | 644 | 7.8 |
| 235/50R17 | 100 | W | 245 | 668 | 8.0 |
| 235/50 R18 | 101 | W | 245 | 693 | 8.0 |
| 285/55 R17 | 103 | W | 245 | 690 | 7.8 |
| 245/35 R19 | 93 | W | 248 | 655 | 7.8 |
| 245/35 R20 | 95 | W | 248 | 680 | 7.8 |
| 245/40 R17 | 95 | W | 248 | 628 | 7.8 |
| 245/40 R18 | 97 | W | 248 | 653 | 7.8 |
| 245/45 R17 | 99 | W | 243 | 652 | 7.8 |
| 245/45 R18 | 100 | W | 243 | 677 | 7.8 |
| 245/45 R20 | 99 | W | 243 | 728 | 7.8 |
| 245/55 R19 | 103 | W | 253 | 753 | 8.0 |
| 255/35 R18 | 94 | W | 260 | 635 | 7.8 |
| 255/35 R19 | 96 | Y | 260 | 661 | 7.8 |
| 255/35 R20 | 97 | W | 260 | 686 | 7.8 |
| 255/40 R19 | 100 | W | 260 | 687 | 8.0 |
| 255/45 R18 | 103 | W | 255 | 687 | 7.8 |
| 265/30R19 | 93 | W | 271 | 643 | 7.8 |
| 265/35R22 | 102 | W | 271 | 745 | 7.7 |
| 265/45 R20 | 104 | W | 266 | 746 | 7.8 |
| 275/30 R19 | 96 | W | 278 | 649 | 7.8 |
| 275/40 R20 | 106 | Y | 278 | 728 | 7.8 |
| 275/45 R20 | 110 | V | 273 | 756 | 8.7 |
| 275/55 R20 | 117 | W | 284 | 810 | 7.8 |
| 285/35R22 | 112 | W | 290 | 759 | 7.8 |
| 285/50 R20 | 116 | V | 297 | 794 | 8.7 |
| 305/35 R24 | 112 | W | 313 | 824 | 7.8 |
| 305/40R22 | 114 | W | 313 | 803 | 7.7 |
| 305/45 R22 | 118 | W | 303 | 833 | 7.7 |
| 315/35R20 | 110 | Y | 320 | 728 | 7.8 |
